MPC-Q5
New idea New concept
leading the trend of broadcasting technology
This is a“splicer”4 main & 4 backup output
Q5has 4 main & 4 backup output
esay to build a backup system
Q5 Supports customized resolution
connect to sending card directly
loads 960million pixels
Maximum width 15,360 pixels
Maximum 6,144 pixels
This is a“switcher”dual DP ture 4K input
Q5 has 6 HD input
Supports 2*DP4K@60Hz
Every DP port supports 8K×1K@60hz maximum
Q5 supports any knid of layout of windows
not limited by pathway
Q5 can take a BG whenever is suitable

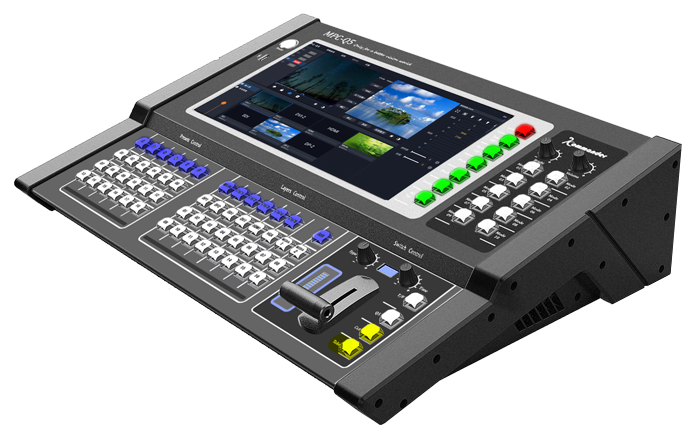

This is a “controller”overall look
Q5 equips a 15.6 inch LCD touchscreen
aviation class T-bar handspike
76 shortcut keys
4 control knob
realize concise and fast switch

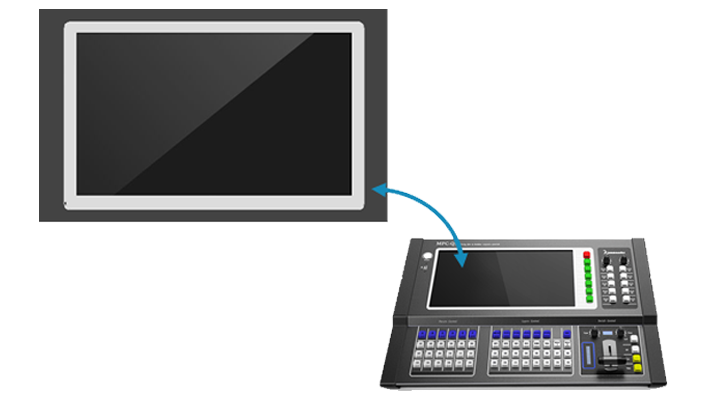

This is also a “monitor”15.6 inch industrial display
Q5 equips a 15.6 inch industrial touchscreen
1920×1080 full HD display
450nits brightness， 72%NTS
seeable under bright lights
This is also a "software"Visual interactive management
LCD touchscreen usage 1：monitor
live monitoring pre-edding&outputs
shows status of inputs
LCDtouchscreen usage 2：smart control
using finger（or mouse）to
operate the whole process
realizing real visual interactive management

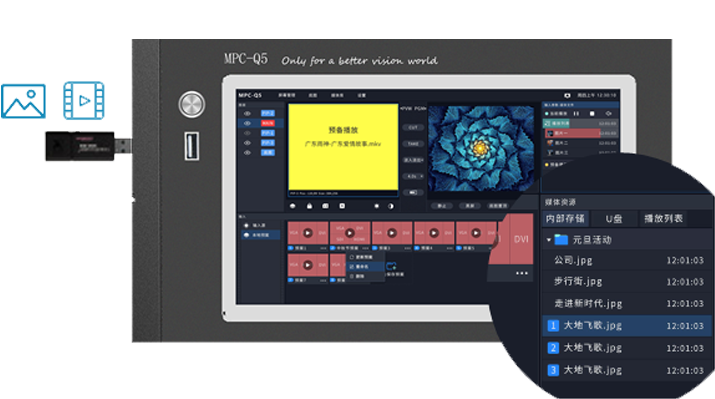

This is also a“Broadcast console”U-disk plugin
built-in operating system
plug in a U-disk to import files
supports playlists
BG video

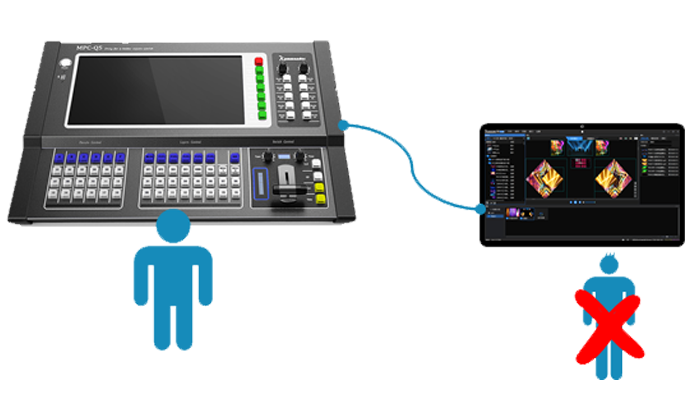

This is also a “MIDI”Controllor controls Broadcast software
Q5 can connect to kommandor softwares
one-click swith
software、controllor handled by one
switch without lag
This is a "Safey Guarantee"KiR intelectual regnization techonology
Q5's unique KiR intelectual regnization techonology
When main server's software crashes,Q5 will automaticly
switch to the backup server
Q5 will automatically switch to Backup server
